316 medical grade stainless steel material

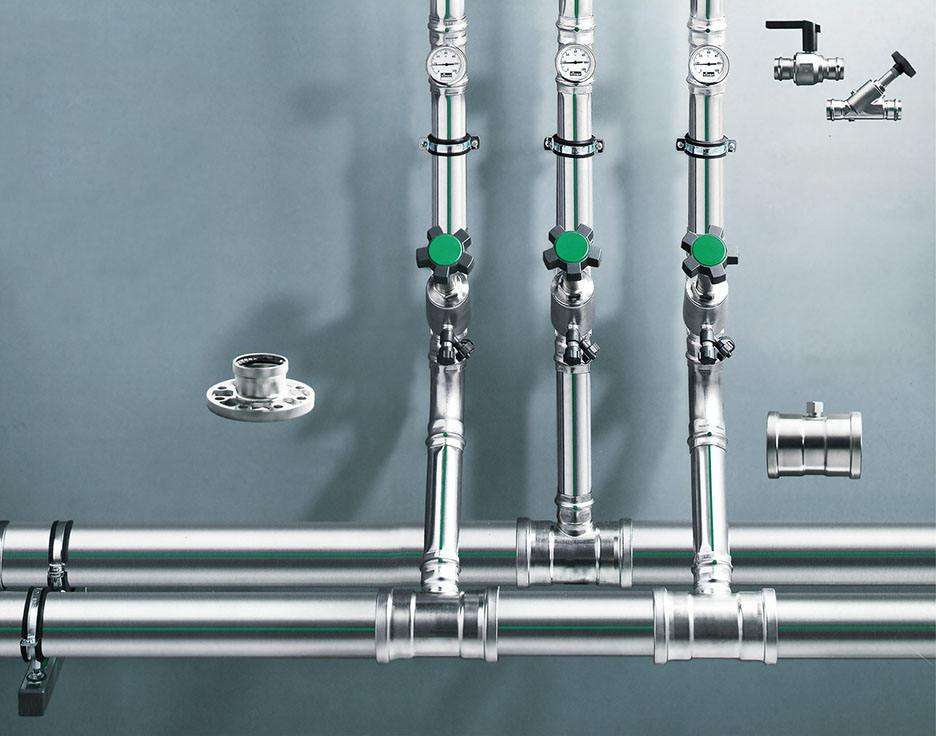

Stainless steel 316L material is widely recognized and used in the medical field for its outstanding corrosion resistance, excellent high temperature resistance, and superior performance. YBP YIPU stainless steel pipes have a smooth surface and a sturdy oxide film that gives stainless steel excellent corrosion resistance in all water types. It has very high strength, can withstand great pressure, and is easy to clean and maintain.
一、Principle of dual card compression connection
1、working principle

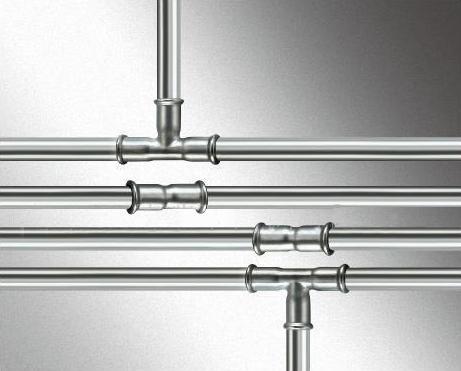

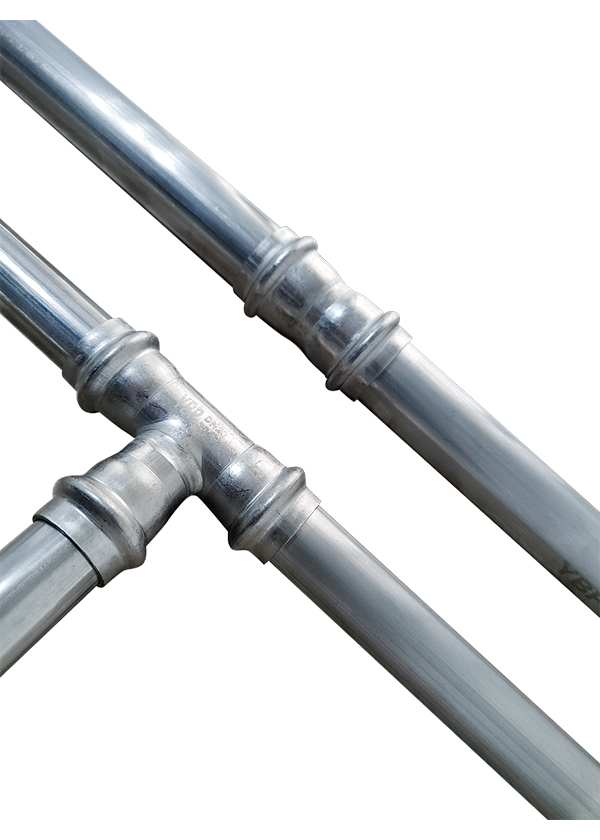

It is a connection method that uses a special tool to insert stainless steel pipes into fittings with sealing rings, and uses compression to cause concentric contraction at the ends of the fittings, thereby achieving sealing and connection.
2、Connection advantages
The characteristics of dual card compression connection include simple and convenient connection, reliable sealing, resistance to pulling, vibration, and high pressure. Its anti rotation principle is to use a dedicated clamping tool to clamp it into a hexagonal shape, preventing water leakage during use; The anti pull principle is achieved through the deformation of the clamped part; The principle of leak prevention is achieved by radially contracting and clamping the rubber O-ring.
二、Technical Information:
1、Appearance: Stainless steel metal original color
2、Specification: DN15-100
3、Installation method: Dual card compression
4、Execution standard: EN10312
5、Work pressure: 1.6Mpa-2.5Mpa
6、Working temperature: 0 ° C~100 ° C
Nominal diameter（DN） | Size：d*s(mm) |
10 | 12.0 x 1.0 |
12 | 15.0 x 1.0 |
15 | 18.0 x 1.0 |
20 | 22.0 x 1.2 |
25 | 28.0 x 1.2 |
32 | 35.0 x 1.5 |
40 | 42.0 x 1.5 |
50 | 54.0 x 1.5 |
